Putting products in cartons and placing cartons, buckets, cans or totes on pallets is a manually intense process ripe for automation. Investing in linear robots for material handling provides quick payback and allows for re-deploying manpower to more effective tasks.

Recently, a Macron Dynamics system integrator, Adaptive Innovations Corp. of Lakewood Colorado, developed a 2-axis, high speed X/Z Row Palletizing / De-palletizing system. To provide X/Z motion, the company integrated a Macron MGS-UC2 linear robot kit.

The palletizer’s design is economical and one of the smallest footprints in the industry. With a payload capacity of 150 pounds and up to 90 cases per minute cycle, the system is flexible enough to carry a wide variety of products.

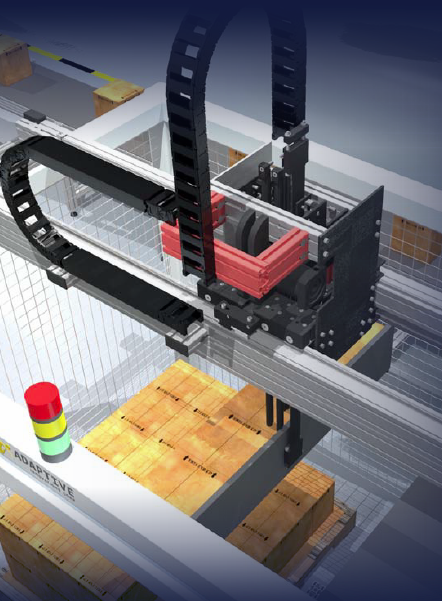

This automated palletizing system demonstrates you don’t need an articulated arm robot for this type of process, as commonly thought. In fact, a linear robot with Cartesian positioning is more than adequate for the task – providing a longer Z-axis reach for those tight pallet stacking or un-stacking requirements.Automated palletizing system gantry

With the help of the UC2, the system has a payload capacity of 150 pounds and moves up to 90 cases per minute.



With the help of Macron’s X/Z palletizing gantry kit, the automated palletizing machine:

  • Moves 90 cases of packaged goods per minute
  • Carries payloads of up to 150 lbs
  • Has a standard repeatability of ±0.1mm

System benefits:
The Macron MGS-UC2 gantry product is a robust and durable 2-axis system with broad payload capacity. Belt driven in each axis, the unit is fast and repeatable. This ready-made kit, in pre-configured standard travel lengths, includes integrated cable management, low profile T-slot sensors and MPG gearboxes ready for any motor mounting.

Customer comments:
Macron’s palletizing gantry kit provided a hassle-free, practically out-of-the-box solution. It’s modular design allowed us to easily integrate it into our palletizing process and overall system including grippers and conveyors.

Is this solution a fit for your automation needs?
Contact Anacar Motion sales engineering team by using our online email form for quick response or call one of our team members directly by visiting us online: https://anacarmotion.com/our-team for more information on our Linear Robot kits for packaging applications.
